Loading Tray 2
Loading Tray 2
Tray 2 and optional Tray 3 are accessed from the front of the printer and hold up to 250 sheets of paper. Tray 2 also supports other media such as envelopes, postcards, transparencies, HP LaserJet glossy paper, and HP LaserJet Photo paper.
| NOTE |
Tray 3 is standard on HP Color LaserJet 2605dtn. |
|---|
| NOTE |
Instructions are the same for loading media in Tray 2 and optional Tray 3. |
|---|

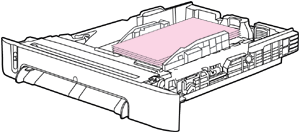

| 1. | Pull Tray 2 or optional Tray 3 out of the printer and remove any paper.
| ||
| 2. | Move the rear guides to match the size of paper that you are loading. Tray 2 and optional Tray 3 accept several standard paper sizes.
| ||
| 3. | If printing paper longer than Letter/A4, extend the rear of the tray until it matches the size you are loading.
| ||
| 4. | Slide the media-width guides slightly wider than the print media.
| ||
| 5. | Load the media.
| ||
| 6. | Make sure that the stack of paper is flat in the tray at all four corners, and keep it below the height tabs on the media-length guide in the rear of the tray.
| ||
| 7. | Slide the tray into the printer. The back of the tray will protrude from the back of the printer.
|
| NOTE |
If you are printing on both sides, see Printing on both sides for loading instructions. |
|---|
